MerCruiser 14' 8-Pin Wire Wiring Harness Dash to Motor Gauges 5.7L 4.3L 3.0L

MerCruiser 14' 8-Pin Wire Wiring Harness Dash to Motor Gauges 5.7L 4.3L 3.0L
Move your mouse over image or click to enlarge
MerCruiser 14' 8-Pin Wire Wiring Harness Dash to Motor Gauges 5.7L 4.3L 3.0L MerCruiser 14' 8-Pin Wire Wiring Harness Dash to Motor Gauges 5.7L 4.3L 3.0L MerCruiser 14' 8-Pin Wire Wiring Harness Dash to Motor Gauges 5.7L 4.3L 3.0L MerCruiser 14' 8-Pin Wire Wiring Harness Dash to Motor Gauges 5.7L 4.3L 3.0L
$ 50.00
-Free Shipping On ALL Orders-

Fast & Free Shipping on All Orders!

14-Day Return Policy

--

Item Details

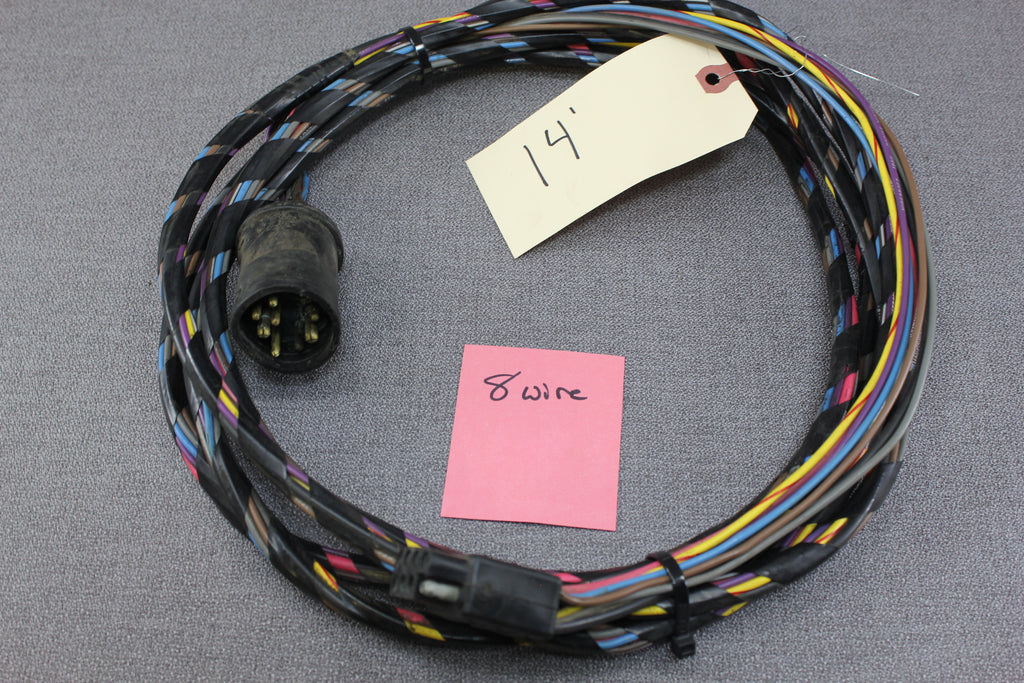

  • Measures around 14' / 14FT / 14 Feet

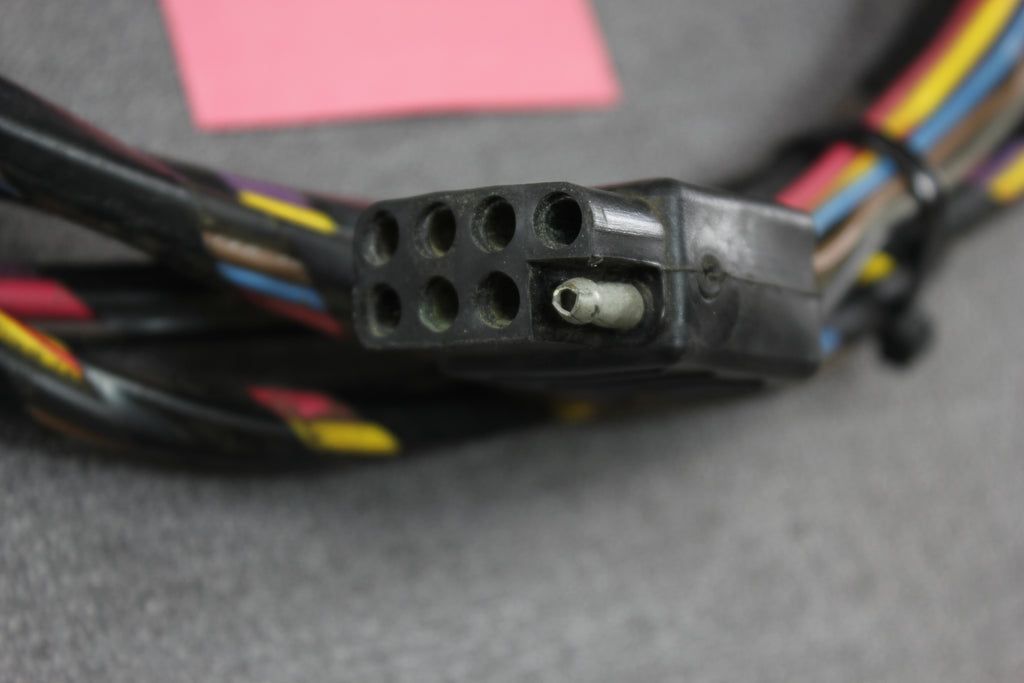

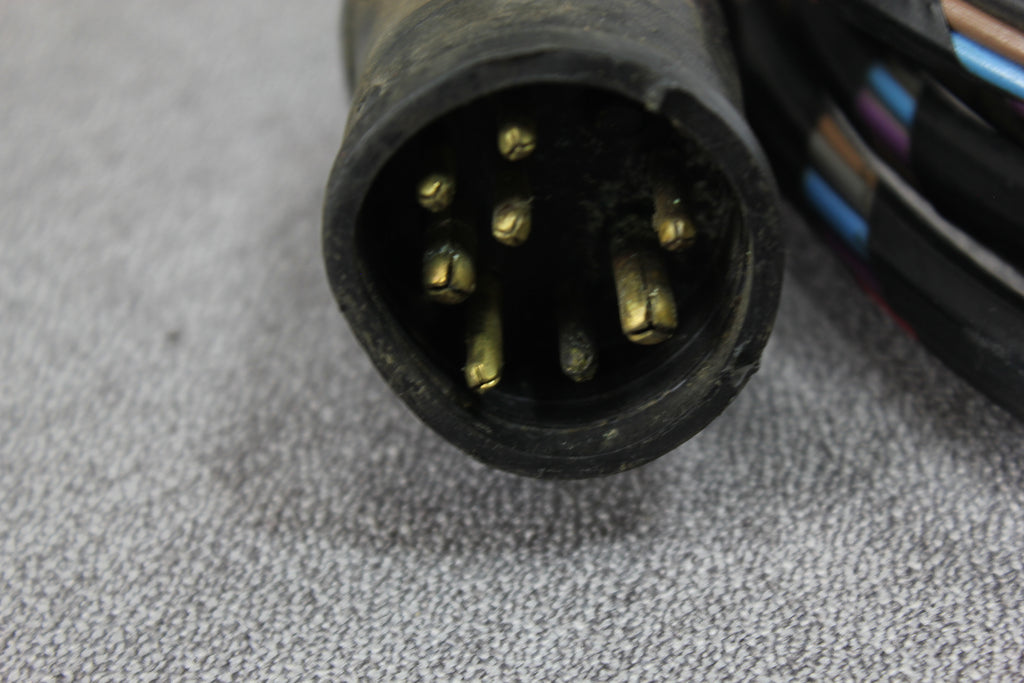

    • 8-Pins (2 Big pins / 6 Small pins)
    • 8-Wires (7 Going into the Dash-side plug)
      • 8th wire for trim sender
    • Some of these sometimes had an additional large "rubber pin" and others did not. It is not necessary and was a place-holder for older MerCruiser wiring harnesses that featured an ammeter. They stopped using that wire sometime in the 1970's, but still molded it blankly into the engine wire harnesses So if you do have the ammeter you could either stop using it or find a different older wiring harness that is already wired for it.

General Application / Compatibility

  • This could be used with MerCruiser applications Roughly 1973-Late 80's / Early 90's
    • Pre-1972 Models used a different plug / pin configuration.
  • Also could be used with OMC Cobra Applications 1986-1993

Other Details

  • Freshwater Used Parts
  • Just make sure to look at the pictures and make sure this matches up with yours... or feel free to contact us with any questions.
  • Overall Good Condition!

Purchase with confidence!

8-Pin 9-Pin 10-Pin Cannon plug Boat Marine Chevy GM V6 120hp 140hp 2.5L 3.0L 4.3L 4.3LX 262cid 470 170hp 165hp 488 485 175hp 185hp 205hp 260hp 350 305 Alpha 1 One 1973 1974 1975 1976 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 Sterndrive
