OMC Cobra Shift Cable 0987661 18-2245-1 Gimbal Bearing Bellows Adjustment Tools

Move your mouse over image or click to enlarge

Fast & Free Shipping on All Orders!

14-Day Return Policy

--

Description

Item Details:

This is the complete kit you would need to properly replace your shift cable along with the exhaust and u-joint drive bellows as well as the Gimbal bearing.
You will receive everything in this set as pictured.
Also Included is the proper special tools needed to adjust your newly installed shift cable.

Parts Included

OMC Shift Cable Sierra 18-2245-1 (1986-1987)* *See Disclaimer & (1988-1993)

*1986 & 1987 Models... You need to track down a different lever arm (985387) and the Cable anchor (914680/ 0914680) to be used properly with this cable. However, the cable itself never changed 1986-1993. The only difference was that the 1986-1987 used the 7-5/8" measurement (with stock lever arm) rather than the updated 7-9/16" like on the tool in conjuction with updated lever arm.
*Replaces: 983950 / 0983950 / 986667 / 0986667 / 986955 / 0986955 / 987662 / 0987662 ---- These are all the numbers from 1986-1987 Models... See disclaimer above.
Replaces 0985587 / 985587 / 0986654 / 986654 / 0987498 / 987498 / 0987661 / 987661 / Sierra 18-2245-1
Does not work with 1993 Ford 5.0L & 5.8L EFI Models

U-Joint Bellows Sierra 18-2765

Replaces 983973 / 0983973 / 987467 / 0987467 / 3854127

Exhaust Bellows Sierra 18-2764

Replaces 911814 / 0911814 / 911814 / 912950 / 0912950 / 914036 / 0914036

Shift Cable Bellows Seal Sierra 18-2763

Replaces 911826 / 0911826

Mounting Gasket Set 18-2918

Replaces 915840 / 0915840

Gimbal Bearing / U-Joint Bearing Assembly Sierra 18-2100

Replaces 0983937 / 983937 / 3853807

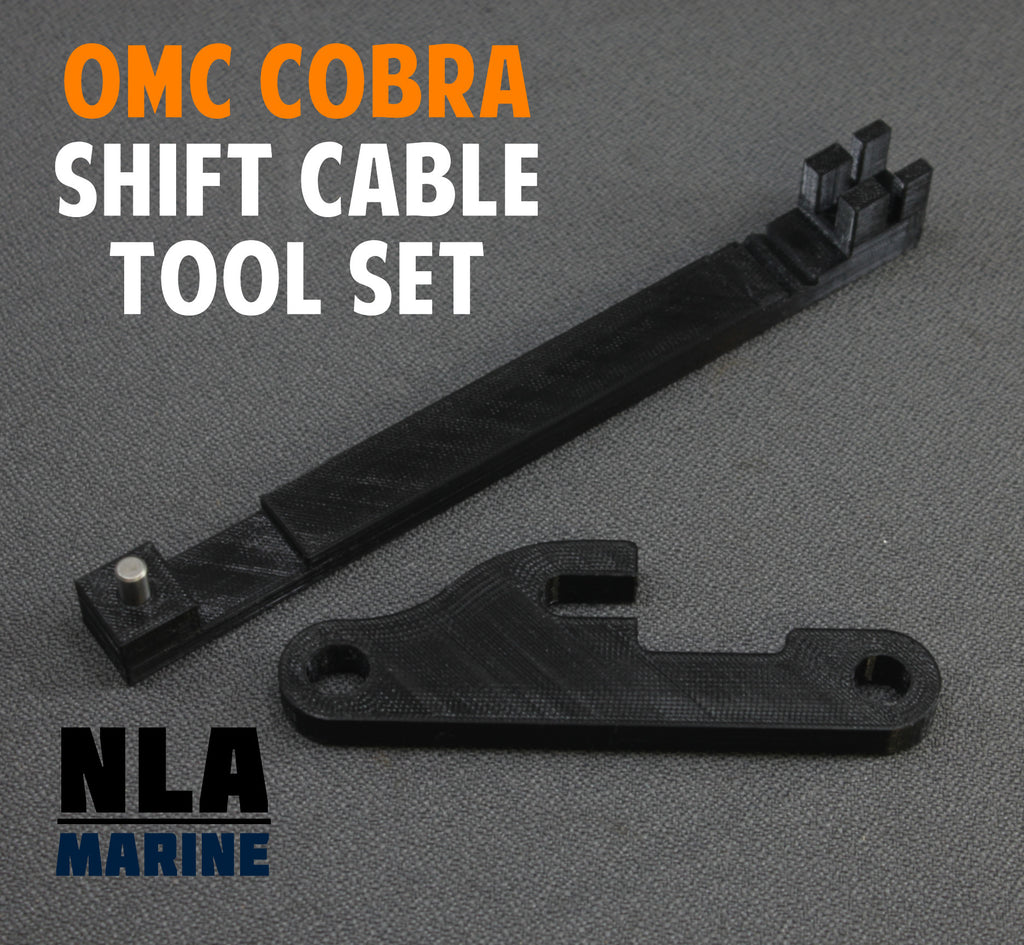

OMC Shift Cable Tools

This set replicates the functionality of the tools mentioned in the service manual.

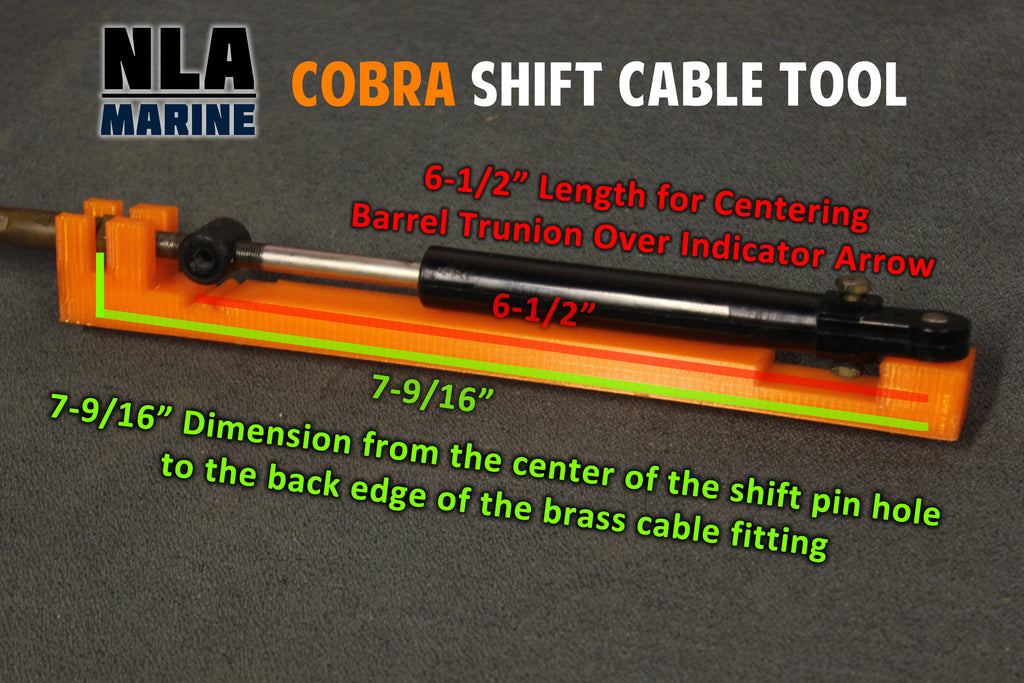

915271 Shift Cable tool

6-1/2" Dimension from the shift pin hole to the indicator arrow
7-9/16" Dimension from the center of the shift pin to the outer edge of the cable brass fitting nut.

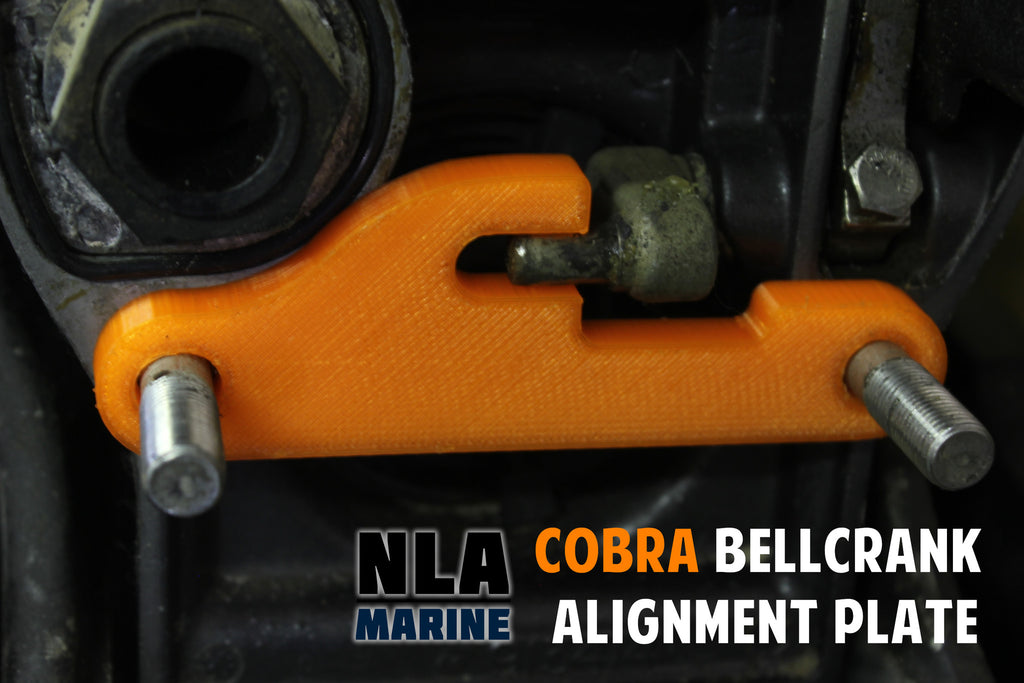

914017 OMC Bellcrank Alignment plate

Slightly thicker than the original to capture the bell crank entirely.

Constructed out extremely durable plastic.

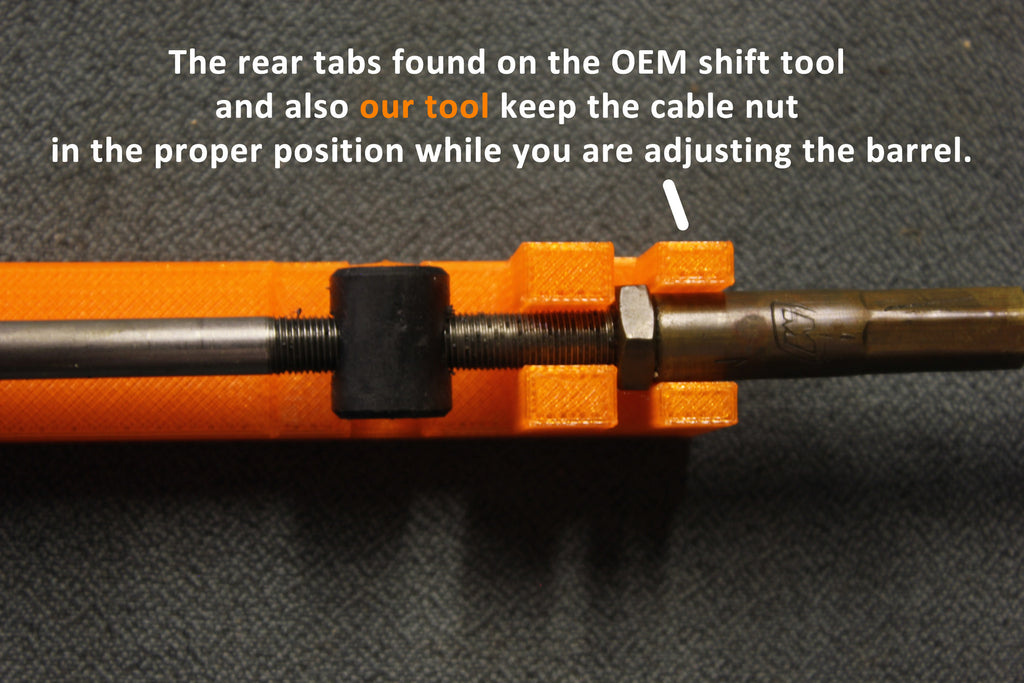

Front & rear tabs on the shift tool (to position everything correctly) and stainless steel dowel to center the nut of the shift pin hole.

Purchase with confidence!

1986 1987 1988 1989 1990 1991 1992 1993

2.5L 120hp / 3.0L 140hp 4cyl / Ford 2.3L 4cyl / 4.3L V6 / 5.0L 305 V8 /5.7L 350 Chevy GM V8 260 / 5.0L 302 Ford V8 / 5.8L 351 Ford V8 / 7.5L 460 Transom
